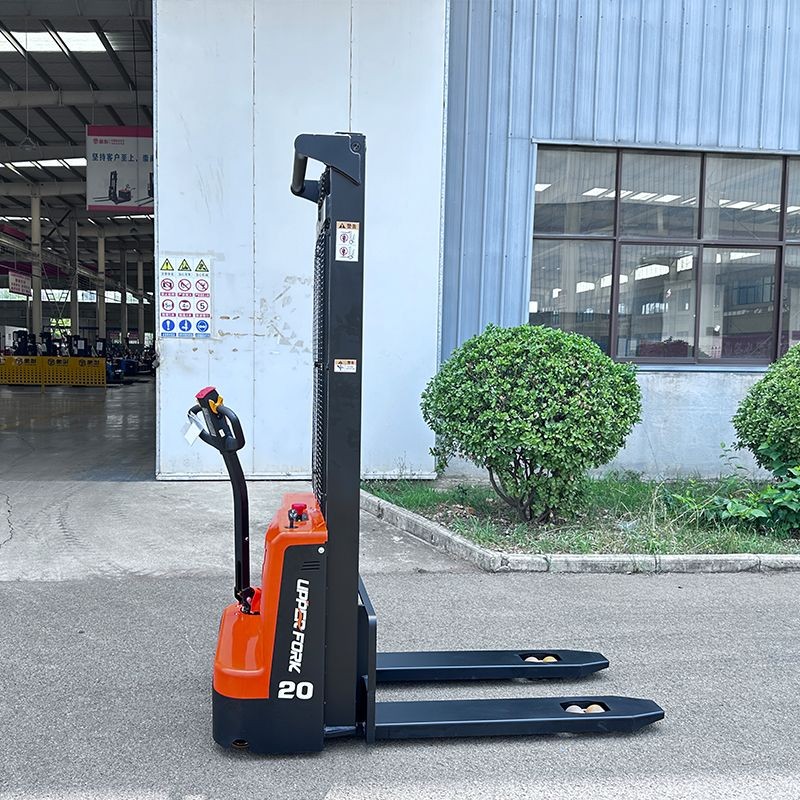

2ton Fully Electric Stacker
Peev xwm: 2000KG
Qhov hnyav: 570/598/625/653KG
Lithium roj teeb: 24V / 85AH
Khoom Taw qhia
Nyob rau hauv niaj hnub warehousing thiab logistics kev khiav hauj lwm, peb nyuam qhuav launched 2-tuj tag nrho- hluav taws xob taug kev- qab stacker tau los ua ib tug txhim khu kev qha kev xaiv rau kev txhim kho kev khiav hauj lwm efficiency nrog nws zoo heev nqa peev xwm thiab ntse tsim. Cov stacker no siv tus qauv steel gantry qauv, muaj kev cuam tshuam zoo heev thiab hnav tsis kam, thiab ua tau raws li qhov xav tau ntawm siab - siv tuav. Lub 48V / 45Ah siab- roj teeb kev ua tau zoo yog ua ke nrog 210 siab - lub zog tsav lub zog, nrog lub zog muaj zog thiab ruaj khov, uas tuaj yeem yooj yim tiv nrog 2-tuj thauj khoom xav tau thiab xyuas kom lub sijhawm ua haujlwm tas mus li yam tsis muaj cov saw tsis ua haujlwm.
Cov khoom no yog txawm peem rau nrog ib tug Jinpeng ntse maub los kom raug tswj lub lifting thiab tsav ceev, nrog rhiab ua hauj lwm teb thiab du ua hauj lwm. Kev sib xyaw kub ntawm 1KW tsav lub cev muaj zog thiab 2.2KW lifting lub cev muaj zog tsis tsuas yog ua kom lub zog ntawm kev tsav tsheb, tab sis kuj ua kom cov txheej txheem nqa tau zoo thiab ruaj khov. Kev siv Zhongli tib yam -lub tog raj kheej roj lub tog raj kheej thiab accelerator ua rau cov cuab yeej siv tau yooj yim dua thiab muaj kev ntseeg siab, ua kom nws lub neej ua haujlwm tau zoo. Kev teeb tsa ntawm lub forklift- cov roj teeb tshwj xeeb muaj lub neej voj voog ntev thiab txhawb nqa kev them nyiaj ceev, uas ua rau muaj txiaj ntsig zoo ntawm kev siv cov khoom siv.
Hais txog kev nyab xeeb kev ua tau zoo, lub tswv yim thim rov qab thaum muaj xwm ceev nres hloov tsim yuav thim rov qab thaum cov khoom siv kov tus neeg teb xov tooj, kom tsis txhob muaj kev pheej hmoo ntawm kev nyem thiab muab tag nrho - tiv thaiv kev nyab xeeb rau tus neeg teb xov tooj. Tag nrho lub tshuab txais kev tsim kho tib neeg, uas yooj yim thiab yooj yim rau kev khiav lag luam, thiab txawm tias cov novices tuaj yeem pib sai. Cov khoom tseem ceeb yog txhua yam ua los ntawm cov khoom siv zoo - zoo qub, nrog tus nqi qis thiab kev saib xyuas yooj yim, uas txo cov nqi siv zoo heev.
Qhov no 2-tuj stacker yog tshwj xeeb tshaj yog haum rau hnyav- cov kev xav tau tuav hauv e-lag luam warehousing, logistics tis, ntau lawm thiab kev tsim khoom. Hauv cov chaw cia khoom loj, nws tuaj yeem yooj yim tiv nrog cov khoom pallets; hauv kev cob qhia ntau lawm, nws tuaj yeem ua tiav qhov kev hloov pauv ntawm cov khoom siv raw thiab cov khoom tiav; nyob rau hauv kev sib txuas ntawm logistics, nws tuaj yeem txhim kho kev thauj khoom thiab tshem tawm kev ua haujlwm zoo. Cov cuab yeej muaj cov qauv compact thiab lub vojvoog tig me me, thiab tuaj yeem ua haujlwm yooj yim txawm nyob hauv qhov chaw nqaim.
Peb ua tsaug caw koj los paub txog cov cuab yeej ua haujlwm tshaj lij no uas suav nrog kev thauj khoom loj, kev nyab xeeb siab thiab kev txawj ntse. Hu rau peb pab neeg muag khoom tam sim ntawd kom tau txais cov ntaub ntawv ntau ntxiv thiab cov lus tshwj xeeb, thiab cia peb cov kws tshaj lij stacker cov kev daws teeb meem coj qhov zoo tshaj plaws rau koj cov khoom lag luam thiab kev lag luam logistics! Xaiv peb 2-tuj tag nrho- hluav taws xob taug kev- qab stacker los ua kom hnyav hnyav tuav tau yooj yim dua, nyab xeeb thiab ua tau zoo dua!
|
Feature |
chav tsev |
|
|
Qauv |
CDD 20 HA |
|
|
Load peev |
Q (kg) |
2000 |
|
Chaw thau khoom |
C (mm) |
500 |
|
Log puag |
Y (mm) |
1285 |
|
0perating yam |
Taug kev |
|
|
Lub log |
||
|
Log hom |
PU |
|
|
Log kom muaj nuj nqis Tsav log / Bearing wheel |
1/1/4 |
|
|
Tsav tsheb loj |
ɸ210×75 |
|
|
Bearing log loj |
80 × 70 (ob lub log) |
|
|
Dimension |
||
|
Max nqa qhov siab |
h1 (mm) |
2000/2500/3000/3500 |
|
Mast txo qis |
h2 (mm) |
1485/1735/1985/2235 |
|
Max qhov siab (mast nqa nrog backrest) |
h3 (mm) |
2450/2S50/3450/3950 |
|
Min.fork txo qhov siab |
S1 (mm) |
85 |
|
Zuag qhia tag nrho diav rawg dav |
B1 (mm) |
560/680 |
|
Sab hauv dav ntawm rab rawg |
B2 (mm) |
240/360 |
|
diav rawg ntev |
L1 (mm) |
1150 (Customizable) |
|
diav rawg dav |
S (mm) |
185 |
|
diav rawg thickness |
e (mm) |
55 |
|
Min ntawm qhov siab |
S2 (mm) |
30 |
|
0verall ntev (nrog / tsis muaj kov) |
L (mm) |
1742 |
|
0 dav dav |
B (mm) |
800 |
|
0 verallheight (nrog kov) |
h4 (mm) |
1305 |
|
0 verallheight (tsis muaj kov) |
h5 (mm) |
855 |
|
Min. Tig lub vojvoog |
Qhov (mm) |
1462 |
|
Min.Aisle dav rau pallets 800x1200 |
Qhov siab (mm) |
2195 |
|
Min.Aisle dav rau pallets 1000x1200 |
Qhov siab (mm) |
2280 |
|
Kev ua tau zoo |
||
|
Kev ceev ceev (laden / unladen) |
km/h |
4.5/5 |
|
Nqa ceev (laden / unladen) |
mm/ os |
85/120 |
|
Tsawg ceev (laden / unladen) |
mm/s |
50/100 |
|
Gradeability (laden / unladen) |
5/7 |
|
|
Hluav taws xob configuration |
||
|
Tsav lub cev muaj zog |
kW |
1.0 |
|
Nqa lub cev muaj zog |
kW |
2.2 |
|
Roj teeb voltage / muaj peev xwm |
V/Ah |
48V / 45Ah |
|
Nres |
Electromagnetic/Regenerative |
|
|
Tus tswj |
Jinpeng tshwj xeeb |
|
|
Qhov hnyav |
||
|
Roj teeb hnyav |
kg |
4×12 |
|
Serviceweight nrog roj teeb |
kg |
570/598/625/653 |
